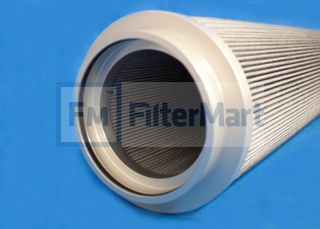

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2216

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:	B10 = 200
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.94 IN (150.88 MM)
  (B) Outer Diameter, Bottom:	5.94 IN (150.88 MM)
  (C) Inner Diameter, Top:	4.14 IN (105.16 MM)
  (D) Inner Diameter, Bottom:	4.14 IN (105.16 MM)
  (E) Length:	37.00 IN (105.16 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	YES
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
