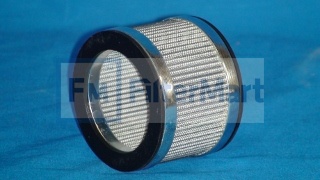

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-2345

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	225 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.29 IN (83.57 MM)
  (B) Outer Diameter, Bottom:	3.29 IN (83.57 MM)
  (C) Inner Diameter, Top:	2.32 IN (58.93 MM)
  (D) Inner Diameter, Bottom:	2.32 IN (58.93 MM)
  (E) Length:	2.38 IN (58.93 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	STEEL
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:
  Plating:
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	0.80 LB (0.36 KG)
