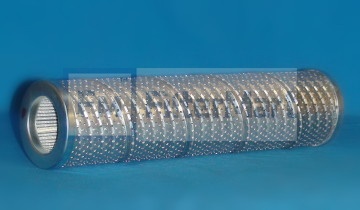

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-3064

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	B6=200
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.83 IN (71.88 MM)
  (B) Outer Diameter, Bottom:	2.83 IN (71.88 MM)
  (C) Inner Diameter, Top:	1.75 IN (44.45 MM)
  (D) Inner Diameter, Bottom:	0.30 IN (7.62 MM)
  (E) Length:	11.81 IN (7.62 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	SINGLE W/BOLT HOLE

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.90 LB (0.86 KG)
