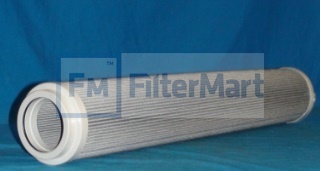

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-3458

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00 ABSOLUTE
  Beta Rating:	B25 =200
  Collapse Pressure Rating:
  Maximum Temperature:	225 F
  Direction of Flow:
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.84 IN (97.54 MM)
  (B) Outer Diameter, Bottom:	3.84 IN (97.54 MM)
  (C) Inner Diameter, Top:	2.40 IN (60.96 MM)
  (E) Length:	25.18 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	YES
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	SYNTHETIC
  Center Tube:	NONE
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
