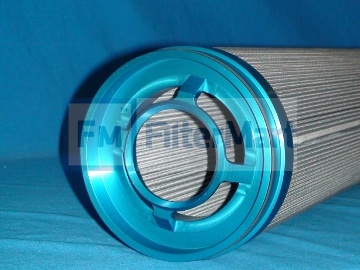

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-5791

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	12.00 ABSOLUTE
  Beta Rating:	B12 = 1000
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.98 IN (151.89 MM)
  (B) Outer Diameter, Bottom:	5.98 IN (151.89 MM)
  (C) Inner Diameter, Top:	3.70 IN (93.98 MM)
  (D) Inner Diameter, Bottom:	2.53 IN (64.26 MM)
  (E) Length:	21.52 IN (64.26 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	NONE
  Type of Media:	MICROGLASS
  Filter Area:
  Plating:	ANODIZED
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
