All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

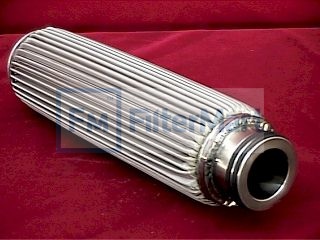

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 10.00 10 |
| Beta Rating: | 200 |
| Collapse Pressure Rating: | 75 PSID |
| Maximum Temperature: | 750 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 25 PSID |
| (A) Outer Diameter, Top: | 2.50 IN (63.50 MM) |
| (B) Outer Diameter, Bottom: | 2.50 IN (63.50 MM) |
| (C) Inner Diameter, Top: | 1.10 IN (27.94 MM) |
| (D) Inner Diameter, Bottom: | 1.10 IN (27.94 MM) |
| (E) Length: | 10.00 IN (27.94 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | TEFLON |
| Type of Adhesive: | NONE (ALL CRIMPED) |
| Type of Endcap: | STAINLESS STEEL |
| Center Tube: | STAINLESS STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | 216 SQ.IN. |
| Plating: | NONE |
| Outer Jacket: | NONE |
| Configuration: |
| Number per Carton: | 1 |
