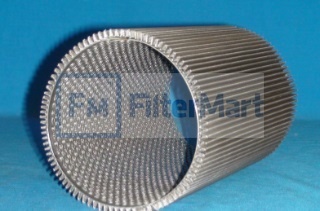

Filtermart™ PLEATED WIRE ELEMENT

Add To Cart

FMC #06-0662

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*3 per carton

Industrial Filters/Wire Filters/Pleated

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00
  Beta Rating:	B25=200
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	250 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.31 IN (134.87 MM)
  (B) Outer Diameter, Bottom:	5.31 IN (134.87 MM)
  (C) Inner Diameter, Top:	4.80 IN (121.92 MM)
  (D) Inner Diameter, Bottom:	4.80 IN (121.92 MM)
  (E) Length:	8.98 IN (121.92 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	N/A
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	304 SS WIRE
  Filter Area:	N/A
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  3
