All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

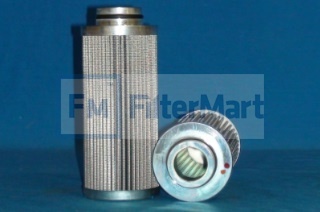

Industrial Filters/Wire Filters/Pleated
| Micron Rating: | 25.00 |
| Beta Rating: | |
| Collapse Pressure Rating: | 300 PSID |
| Maximum Temperature: | 225 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 0 PSID |
| (A) Outer Diameter, Top: | 2.74 IN (69.60 MM) |
| (B) Outer Diameter, Bottom: | 2.74 IN (69.60 MM) |
| (C) Inner Diameter, Top: | 1.08 IN (27.43 MM) |
| (D) Inner Diameter, Bottom: | 1.14 IN (28.96 MM) |
| (E) Length: | 6.69 IN (28.96 MM) |
| (F) Thread: |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | EPOXY |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | 304 SS WIRE |
| Filter Area: | |
| Plating: | |
| Outer Jacket: | NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
