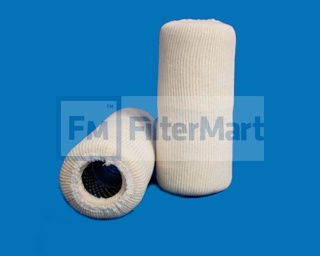

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0167

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	30.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.06 IN (77.72 MM)
  (B) Outer Diameter, Bottom:	3.06 IN (77.72 MM)
  (C) Inner Diameter, Top:	1.69 IN (42.93 MM)
  (D) Inner Diameter, Bottom:	1.69 IN (42.93 MM)
  (E) Length:	7.28 IN (42.93 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	NONE
  Type of Endcap:	NONE
  Center Tube:	PLATED STEEL
  Type of Media:	COTTON
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	6.90 LB (3.13 KG)
