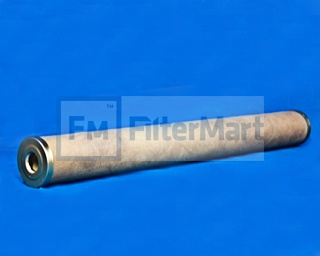

Filtermart™ LIQUID COALESCER ELEMENT

Add To Cart

FMC #16-0003

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Liquid

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	40 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.38 IN (85.85 MM)
  (B) Outer Diameter, Bottom:	3.38 IN (85.85 MM)
  (C) Inner Diameter, Top:	1.19 IN (30.23 MM)
  (D) Inner Diameter, Bottom:	1.19 IN (30.23 MM)
  (E) Length:	30.75 IN (30.23 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	NONE
  Type of Media:	FIBERGLASS
  Filter Area:	SQ.IN.
  Plating:	ANODIZED
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	11.00 LB (4.99 KG)
