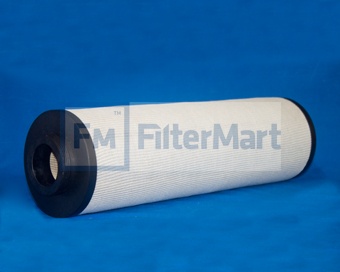

Filtermart™ LIQUID COALESCER ELEMENT

Add To Cart

FMC #16-1316

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	6.00 IN (152.40 MM)
  (B) Outer Diameter, Bottom:	6.00 IN (152.40 MM)
  (C) Inner Diameter, Top:	2.38 IN (60.45 MM)
  (E) Length:	36.00 IN (0.00 MM)
  (F) Thread:	3" MALE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	GLASS FILLED NYLON
  Center Tube:	NONE
  Type of Media:	PAPER/GLASS
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES - SOCK
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	8.00 LB (3.63 KG)
