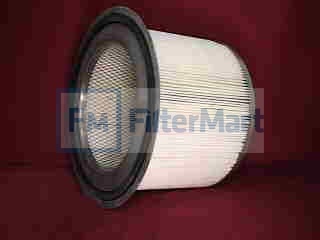

Filtermart™ DUST COLLECTOR ELEMENT

Add To Cart

FMC #21-0005

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Dust Collector

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	150 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	13.82 IN (351.03 MM)
  (B) Outer Diameter, Bottom:	16.60 IN (421.64 MM)
  (C) Inner Diameter, Top:	10.60 IN (269.24 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NEOPRENE
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.FT.
  Plating:	ELECTRO-GALVANIZED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	15.00 LB (6.80 KG)
