All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

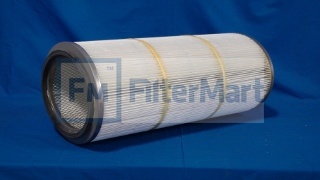

Industrial Filters/Air Filters/Dust Collector
| Micron Rating: | 2.00 ABSOLUTE |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | |
| Maximum Temperature: | 150 F |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 14.40 IN (365.76 MM) |
| (B) Outer Diameter, Bottom: | 11.40 IN (289.56 MM) |
| (C) Inner Diameter, Top: | 11.13 IN (282.70 MM) |
| (D) Inner Diameter, Bottom: | 8.00 IN (203.20 MM) |
| (E) Length: | 26.00 IN (203.20 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | ISOPRENE |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | POLYESTER/GLAS |
| Filter Area: | 89 SQ. FT. |
| Plating: | GALVANIZED |
| Outer Jacket: | NONE - NONE |
| Configuration: | DOUBLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 14.00 LB (6.35 KG) |
