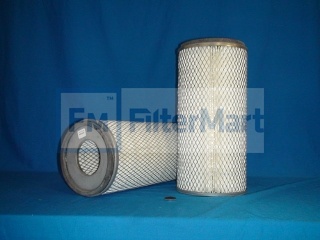

Filtermart™ DUST COLLECTOR ELEMENT

Add To Cart

FMC #21-3097

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Air Filters/Dust Collector

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00 NOMINAL
  Beta Rating:	MERV 14
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	150 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.93 IN (201.42 MM)
  (B) Outer Diameter, Bottom:	7.93 IN (201.42 MM)
  (C) Inner Diameter, Top:	3.59 IN (91.19 MM)
  (D) Inner Diameter, Bottom:	0.50 IN (12.70 MM)
  (E) Length:	16.00 IN (12.70 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	80/20 BLEND
  Filter Area:	SQ.FT.
  Plating:	ELECTRO-GALVANIZED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END/BH

• Packaging Specifications

  Number per Carton:

  4
