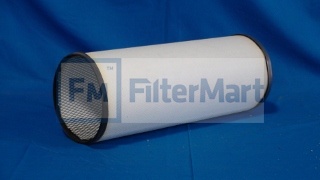

Filtermart™ INTAKE AIR FILTER ELEMENT

Add To Cart

FMC #22-0026

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*2 per carton

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	NOT RATED
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.25 IN (184.15 MM)
  (B) Outer Diameter, Bottom:	7.44 IN (188.98 MM)
  (C) Inner Diameter, Top:	6.75 IN (171.45 MM)
  (D) Inner Diameter, Bottom:	1.00 IN (25.40 MM)
  (E) Length:	19.13 IN (25.40 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE - NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:

  2
