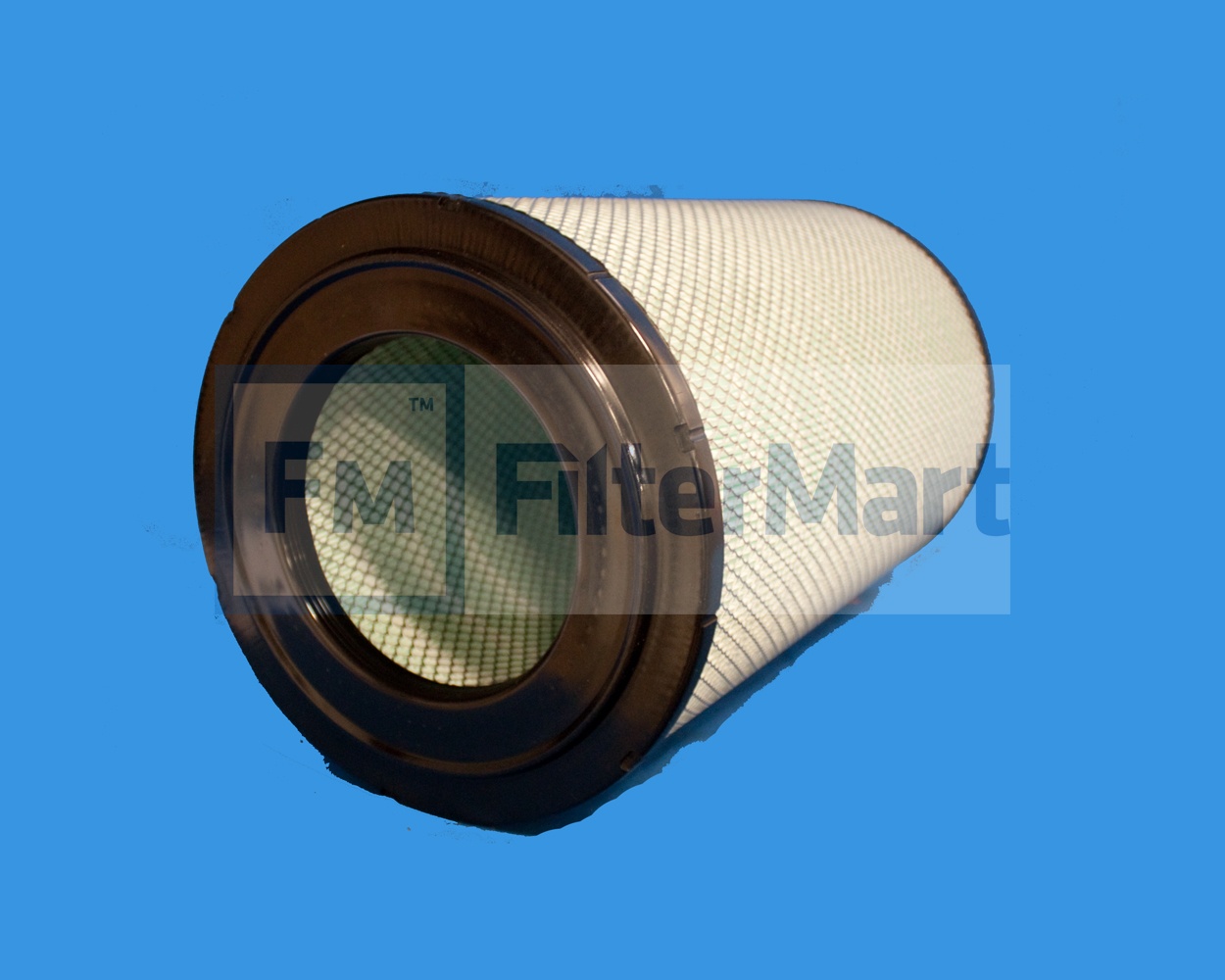

Filtermart™ INTAKE AIR ELEMENT

Add To Cart

FMC #22-5781

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Air Filters/Intake Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	15.00 NOMINAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	N/A
  Maximum Temperature:	N/A
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	12.25 IN (311.15 MM)
  (B) Outer Diameter, Bottom:	12.25 IN (311.15 MM)
  (C) Inner Diameter, Top:	7.00 IN (177.80 MM)
  (E) Length:	20.63 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	MOLDED
  Type of Adhesive:	N/A
  Type of Endcap:	MOLDED
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	N/A
  Plating:	N/A
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	9.20 LB (4.17 KG)
