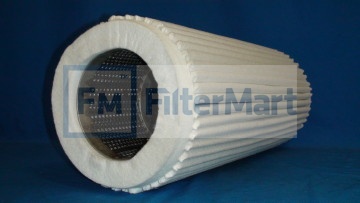

Filtermart™ RADIAL FIN ELEMENT

Add To Cart

FMC #23-2897

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Radial Fin Filters/Liquid or Air

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	NOT RATED
  Maximum Temperature:	300 F.
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	10.38 IN (263.65 MM)
  (B) Outer Diameter, Bottom:	10.38 IN (263.65 MM)
  (C) Inner Diameter, Top:	6.38 IN (162.05 MM)
  (D) Inner Diameter, Bottom:	6.38 IN (162.05 MM)
  (E) Length:	25.25 IN (162.05 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	FELT
  Type of Adhesive:	EPOXY
  Type of Endcap:	NONE
  Center Tube:	304 STAINLESS STEEL
  Type of Media:	POLYPROPYLENE
  Filter Area:	27.0 SQ.FT.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:

  1
