All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

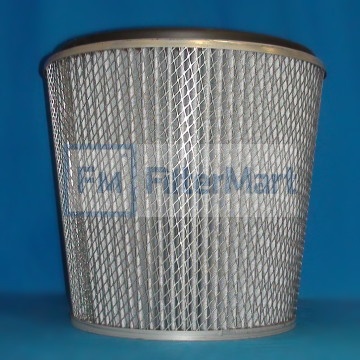

Industrial Filters/Radial Fin Filters/Liquid or Air
| Micron Rating: | 10.00 |
| Beta Rating: | |
| Collapse Pressure Rating: | |
| Maximum Temperature: | |
| Direction of Flow: | OUTSIDE->IN |
| Recommended Changeout Differential Pressure: | 0 PSID |
| (A) Outer Diameter, Top: | 17.25 IN (438.15 MM) |
| (B) Outer Diameter, Bottom: | 13.84 IN (351.54 MM) |
| (C) Inner Diameter, Top: | 9.52 IN (241.81 MM) |
| (D) Inner Diameter, Bottom: | 0.88 IN (22.35 MM) |
| (E) Length: | 14.00 IN (22.35 MM) |
| (F) Thread: |
| Handle: | NONE |
| Seal Material: | |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | PLATED STEEL |
| Type of Media: | POLYESTER FELT |
| Filter Area: | |
| Plating: | |
| Outer Jacket: | YES - SCREEN |
| Configuration: | SINGLE W/BOLT HOLE |
| Number per Carton: | 1 |
| Carton Weight: | 15.00 LB (6.80 KG) |
