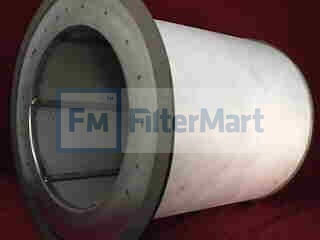

Filtermart™ AIR/OIL SEPARATOR ELEMENT

Add To Cart

FMC #24-0735

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Separator Filters/Air/Oil

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	50
  Maximum Temperature:	300 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	23.75 IN (603.25 MM)
  (B) Outer Diameter, Bottom:	19.00 IN (482.60 MM)
  (C) Inner Diameter, Top:	15.00 IN (381.00 MM)
  (E) Length:	22.25 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:
  Type of Adhesive:	POLYURETHANE
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	85.00 LB (38.56 KG)
