All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

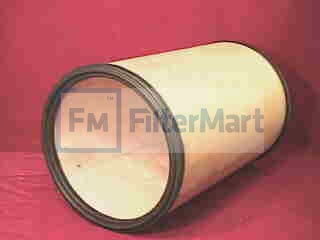

Industrial Filters/Separator Filters/Air/Oil
| Micron Rating: | 0.30 |
| Beta Rating: | N/A |
| Collapse Pressure Rating: | |
| Maximum Temperature: | |
| Direction of Flow: | |
| Recommended Changeout Differential Pressure: | 20 PSID |
| (A) Outer Diameter, Top: | 10.50 IN (266.70 MM) |
| (B) Outer Diameter, Bottom: | 10.50 IN (266.70 MM) |
| (C) Inner Diameter, Top: | 6.88 IN (174.75 MM) |
| (D) Inner Diameter, Bottom: | 0.38 IN (9.65 MM) |
| (E) Length: | 18.50 IN (9.65 MM) |
| (F) Thread: | NONE |
| Handle: | NONE |
| Seal Material: | BUNA-N |
| Type of Adhesive: | |
| Type of Endcap: | PLATED STEEL |
| Center Tube: | STEEL |
| Type of Media: | FIBERGLASS |
| Filter Area: | SQ.IN. |
| Plating: | |
| Outer Jacket: | YES |
| Configuration: | SINGLE OPEN END |
| Number per Carton: | 1 |
| Carton Weight: | 14.00 LB (6.35 KG) |
