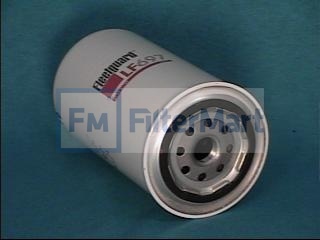

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #25-0539

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*12 per carton

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 NOMINAL
  Beta Rating:	N/A BPV 9.57
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.78 IN (96.01 MM)
  (B) Outer Diameter, Bottom:	3.78 IN (96.01 MM)
  (E) Length:	6.90 IN (0.00 MM)
  (F) Thread:	3/4-16

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN SPIN-ON

• Packaging Specifications

  Number per Carton:	12
  Carton Weight:	16.80 LB (7.62 KG)
